Gate Valve serie
a type of valve that uses a flat or curved disc perpendicular to the process flow
The Gate Valve serie
Today’s O&G applications mean process control needs and safety system to limit any wild parameter and danger; the use of high reliable and well designed solutions to generate high efficiency and guarantee process efficacy is nowadays paramount.

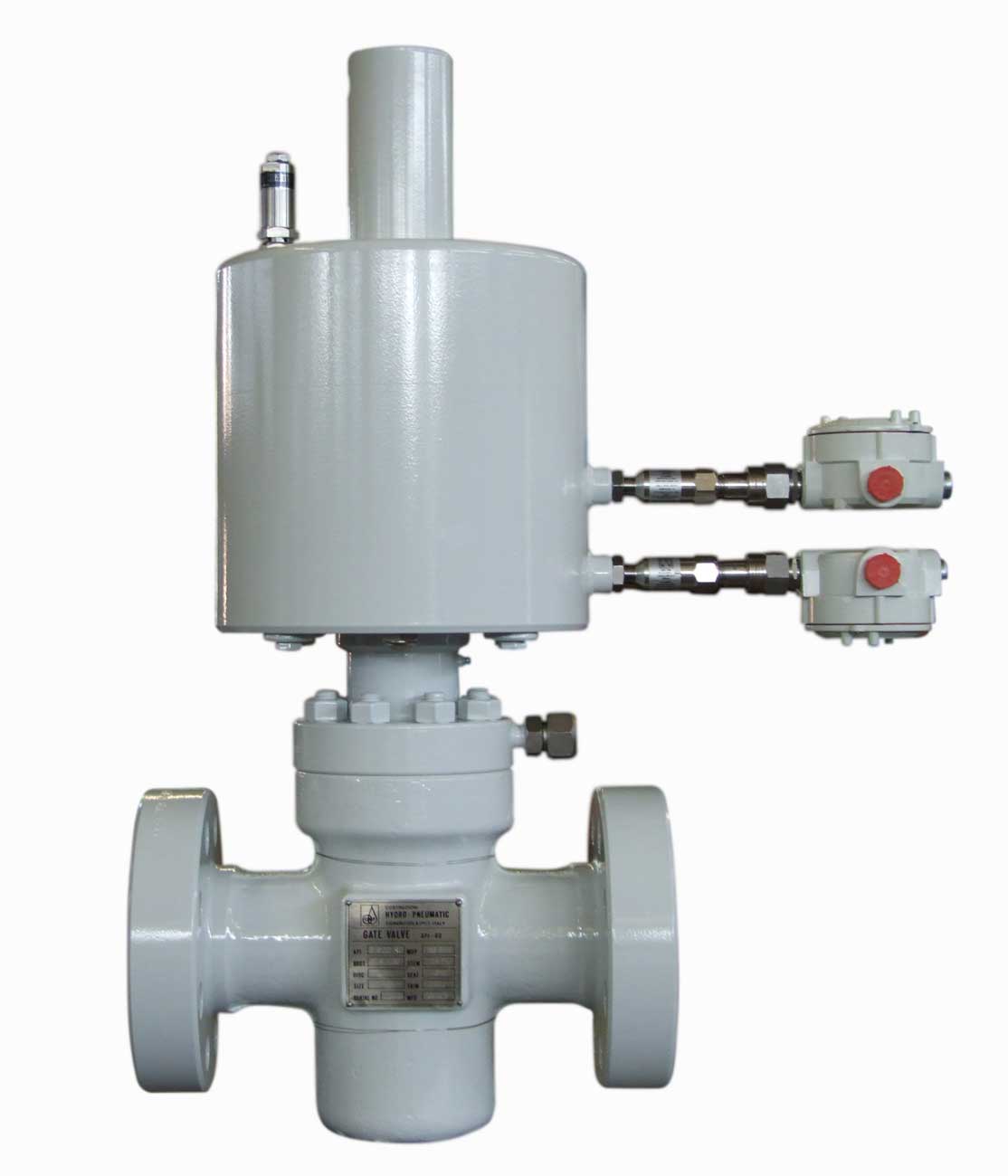

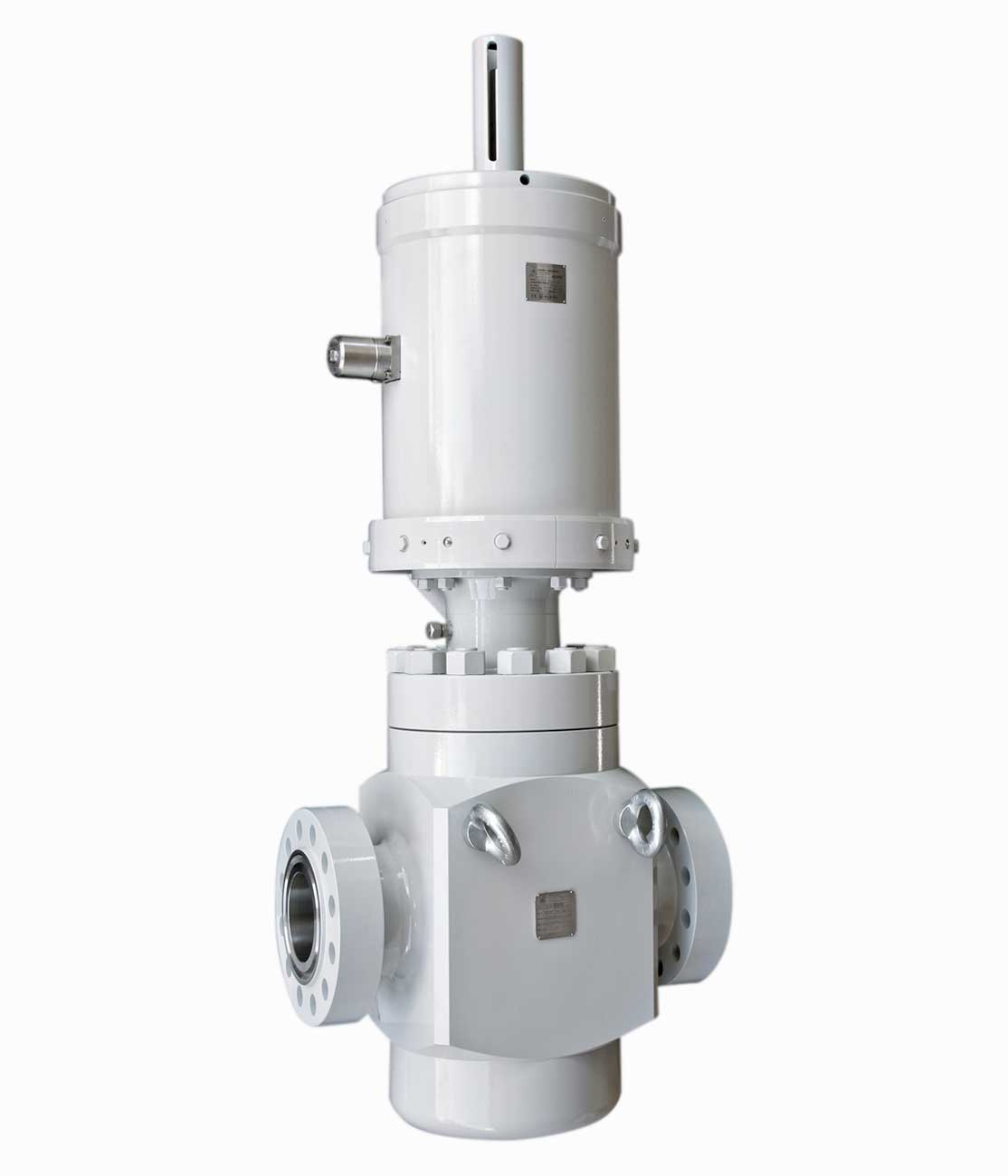

Gate valves are a type of slide valve that uses a flat or curved disc perpendicular to the process flow; the disc slides into the flow stream to provide tight shut-off.
The fluid pressure acting on the disc is sufficient to produce a satisfactory seal between metal-to-metal seatings.
The Gate Valve serie
| Component | Materials |
|---|---|
| Body | AISI 4130 ASTM A350 LF2 Duplex & Super Duplex ASTM A182 |
| Bonnet | As above |
| Seats | AISI 410, F51, Inconel, all with Tungsten Carbide Overlay |
| Gate | AISI 410, F51, Inconel, all with Tungsten Carbide Overlay |
| Stem | 17-4PH, Inconel 718 |
| Seals | PTFE, Viton, Graphite |
| Body to bonnet seal | AISI 316 |
Other materials available upon request
The Gate Valve serie
-
Typical Applications
HydroPneumatic Gate valves are typically the perfect solution for:
- Wellheads
- Blowdown
- Production
- Heater Bypass
- Pipeline
- SSV (Surface Safety)
- LPO (Line Pressure Operated)
- HIPPS
-
Features
- API 6A and API 6D/ASME design
- Slab and expanding gate through Conduit design
- Pressure rating up to ANSI 2500, API 15k PSI
-
Flanged from 1 13/16’’ up to 11’’ API
(other ends connection available upon request) -
Flanged from 1 13/16’’ up to 11’’ API
(other ends connection available upon request) - Customized end to end dimensions
- PSL 1-4
- PR1-2
- API material classes from AA through HH
- API temperature classes from P/L through U
- Extensive Range of Body/Trim Materials
-
Material for H2 and CO2 service
in accordance with NACE MR01-75 latest edition - Forged bodies for maximum safety and reliability
- Tungsten Carbide wear resistant Trim
- Actuation: Manual, Pneumatic and/or Hydraulic single & double acting, Electric and Electro-hydraulic
-
Benefits
- One single piece body and integral flanges for long service life – no welding
- Heavy duty design to withstand service life with high thickness wall
- Suitable for contaminated and corrosive fluids and high sand content
- Resistant against high pressure drops
- High seat tightness
- Selective stem Backseat to allow stem packing replacement when under pressure
- Bidirectional seats spring loaded and pressure energized for continuous contact gate/seat for low pressure sealing
- Threaded packing retainer to allow bearings or stem pin maintenance when under pressure
- Wiper ring to prevent material entrance and to provide stem alignment
- Fugitive emission design
- Multi purpose fitting port to allow lubrication and vent
- Integral actuation system to reduce overall dimensions
- Fire resistance
- Easy maintenance design
- Low life cycle costs
